ALL POWDERCOATING ORDERS ARE CURRENTLY APPROX 14 DAYS
Our 27mm system is designed for use with 26.9mm External Diameter Tube with a 3.25mm Wall Thickness. This is commonly referred to as 3/4" (Three Quarters of an Inch) Internal Diameter pipe.
Best For:
Lightweight Frames
Small Furniture
Key Clamp 34mm
Our 34mm system is designed for use with 33.7mm External Diameter Tube with a 3.25mm Wall Thickness. This is commonly referred to as 1" (One Inch) Internal Diameter pipe.
Best For:
General Use (Light)
Clothing Rails
Key Clamp 42mm
Our 42mm system is designed for use with 42.4mm External Diameter Tube with a 3.25mm Wall Thickness. This is commonly referred to as 1.1/4" (One and Quarter Inches) Internal Diameter pipe.
Best For:
Handrailing, Light Barriers
Desks, Tables, Chairs
Key Clamp 48mm
Our 48mm system is designed for use with 48.3mm External Diameter Tube with a 3.25mm Wall Thickness. This is commonly referred to as 1.1/2" (One and Half Inches) Internal Diameter pipe, and is the standard Scaffolding size also.
Best For:
Pedestrian Safety
Heavy Handrailing
Key Clamp 60mm
Our 42mm system is designed for use with 60.3mm External Diameter Tube with a 3.50mm Wall Thickness. This is commonly referred to as 2" (Two Inch) Internal Diameter pipe.
Best For:
Ultra Heavy Handrailing
Heavy Duty Frames
DDA Fittings
DDA Fittings are part of a hybrid system that incorporates a mixture of 42mm and 48mm systems. We always recommend that our customers seek expert advice with DDA systems and fittings, especially if you are unaware of the differences regarding installation and design of DDA compliant handrails.
Quick Overview
The creme de-la-creme of professional spirit levels for railing installers, Stabila have outdone theirselves, with a highly accurate electronic display that gives an instantaneous reading of your level. Great for setting inclines / ramp angles, as well as keeping your entire railing in level and plumb. This is a serious tool.
The creme de-la-creme of professional spirit levels for railing installers, Stabila have outdone theirselves, with a highly accurate electronic display that gives an instantaneous reading of your level. Great for setting inclines / ramp angles, as well as keeping your entire railing in level and plumb. This is a serious tool.

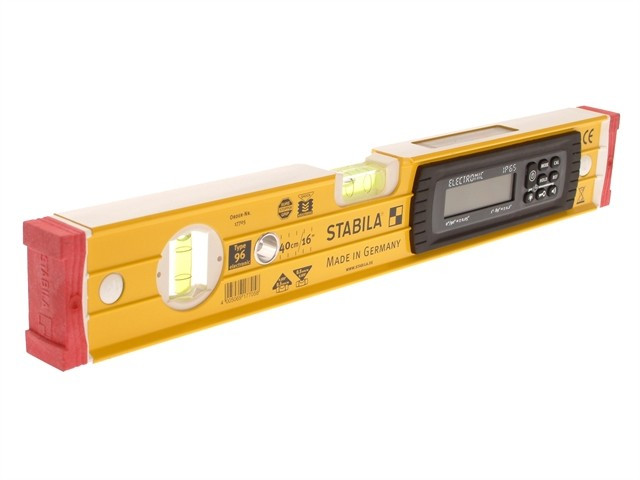

Stabila 96-2 Electronic Level is a professional quality level with electronic inclinometer, ideal for carpenters, joiners, kitchen builders, metalworkers, formworkers, construction engineers, pipe fitters and many more.
Inclinometer features dual display for accurate easy reading of inclinations in all positions. A second display located in the upper surface for easier reading of the measured value, with an angle indication in degrees, percentage, mm /m, in/ft.
Accoustic signal for horizontal and vertical measuring and an automatic switch off can be selected after 10min or 2 hours.
Spirit Level is extra long ribbed profile providing a high resistance to deformation during everyday use on site. Permanently moulded precision vials for overhead reading - no readjustment required. Removeable endcaps for measuring flush into corners. Special coating to protect level against dirt.
Specification:
Length: 400mm (16 in).
Measuring accuracy of electronic module @ 0° and 90° 0.05° , @ 1° and 89° 0.2°
Measuring accuracy of spirit level: in normal position: 0.029° = 0.5 mm /m, and in upside down position 0.029° = 0.5 mm /m.
All the clamps we sell are cross compatible. We sell brands including: Q Clamp, Tubeclamps, Pipeclamps, Interclamp, JM Clamp and Alvin Key Clamp, amongst a few other generic Key Clamp Brands.
Some manufacturers use different part numbers. Give us a call if you aren't sure what part you need because your original part number doesn't tally up.
And remember, all key clamps are returnable if they do not suit. With the exception of Cut to length Handrail Tube and Modified parts, we accept returns with no questions asked.
