Short Tee 27mm 101 27 A

A 27mm Short Tee. Key Clamp is ideal for lots of uses. Size and Model also known as part 101 size 27 or size A

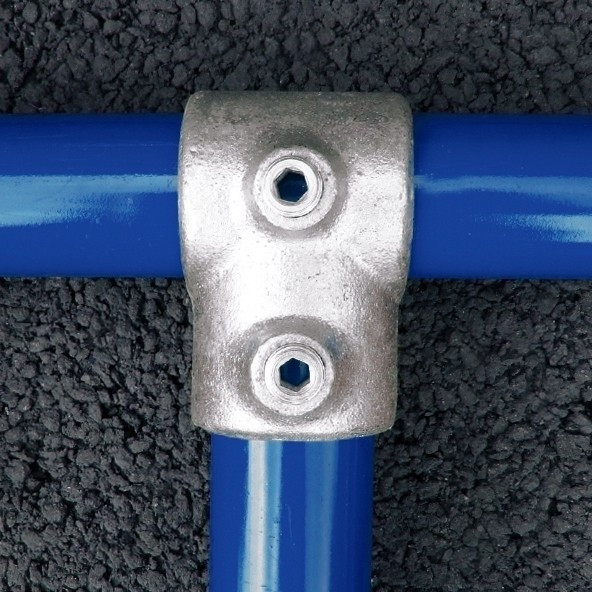

A 90° tee connection between two tubes. Typical use is on straight and level guardrail to connect the vertical to the top rail or end/mid rail to the vertical. This fitting cannot be used to join tubes in the top of the short tee.

Availability: In stock for immediate despatch!

Excl. Tax: £0.97 Incl. Tax: £1.16
KeyClampStore

Not sure if this is what you need? Call us!

Industry leading no-hassle, fuss-free returns policy.

Trained staff with knowledge of Key Clamp fittings, railings & balustrades.

Product Description
Details


101-short-tee-sketch

ReferenceABCDEFGHole Diameter (mm)Weight (kgs)
101-A27 27mm 27mm 41 0.19
101-B34 34mm 34mm 46 0.30
101-C42 42mm 42mm 60 0.46
101-D48 48mm 48mm 68 0.53
101-E60 60mm 60mm 84 0.85

Key Clamp fitting 101-A27 Designed for use with 26.9mm Outer Diameter Tubing, referred to as 27mm across our site.

Cross References

  • Kee Klamp Reference: 10-5
  • FastClamp Reference: C03G20
  • Alvin Key Clamp Reference: A2 Size 5
Additional Information
Additional Information
UPC / EAN 638317731883
best No
KK Reference Name single socket tee
KK No. 10
KK SKU 10-May
Send inquiry? No
Call For Price No
Product Tags
Product Tags

Use spaces to separate tags. Use single quotes (') for phrases.

Our Policies

Information On Key Clamps

All the clamps we sell are inter compatible.
We sell brands including: Q Clamp, Tubeclamps, Pipeclamps, Interclamp, JM Clamp and Alvin Key Clamp, amongst a few other generic Key Clamp Brands.

Some manufacturers use different part numbers.
Give us a call if you aren't sure what part you need because your original part number doesn't tally up.

And remember, all key clamps are returnable if they do not suit.
With the exception of Handrail, Tube and Modified parts, we accept returns with no questions asked.
