ALL POWDERCOATING ORDERS ARE CURRENTLY APPROX 14 DAYS
Our 27mm system is designed for use with 26.9mm External Diameter Tube with a 3.25mm Wall Thickness. This is commonly referred to as 3/4" (Three Quarters of an Inch) Internal Diameter pipe.
Best For:
Lightweight Frames
Small Furniture
Key Clamp 34mm
Our 34mm system is designed for use with 33.7mm External Diameter Tube with a 3.25mm Wall Thickness. This is commonly referred to as 1" (One Inch) Internal Diameter pipe.
Best For:
General Use (Light)
Clothing Rails
Key Clamp 42mm
Our 42mm system is designed for use with 42.4mm External Diameter Tube with a 3.25mm Wall Thickness. This is commonly referred to as 1.1/4" (One and Quarter Inches) Internal Diameter pipe.
Best For:
Handrailing, Light Barriers
Desks, Tables, Chairs
Key Clamp 48mm
Our 48mm system is designed for use with 48.3mm External Diameter Tube with a 3.25mm Wall Thickness. This is commonly referred to as 1.1/2" (One and Half Inches) Internal Diameter pipe, and is the standard Scaffolding size also.
Best For:
Pedestrian Safety
Heavy Handrailing
Key Clamp 60mm
Our 42mm system is designed for use with 60.3mm External Diameter Tube with a 3.50mm Wall Thickness. This is commonly referred to as 2" (Two Inch) Internal Diameter pipe.
Best For:
Ultra Heavy Handrailing
Heavy Duty Frames
DDA Fittings
DDA Fittings are part of a hybrid system that incorporates a mixture of 42mm and 48mm systems. We always recommend that our customers seek expert advice with DDA systems and fittings, especially if you are unaware of the differences regarding installation and design of DDA compliant handrails.

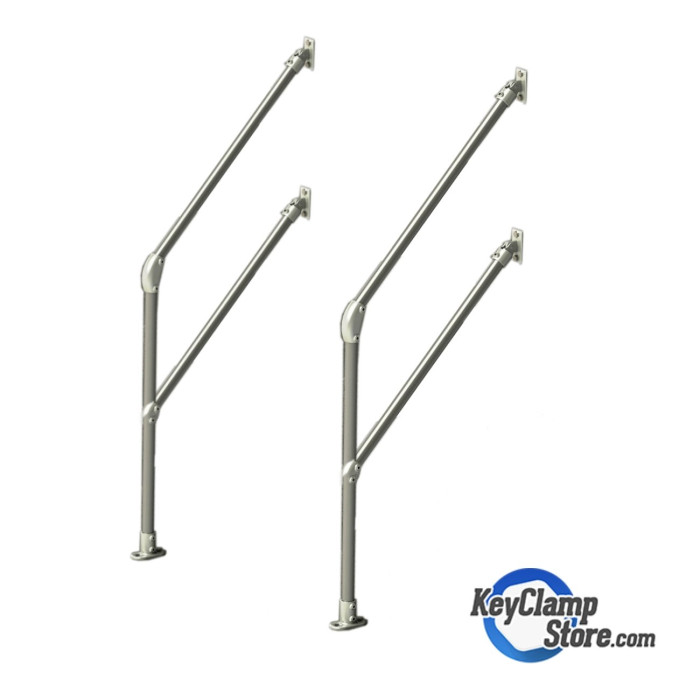

Quick Overview
Use the drop down menus above to select your Handrail / Safety Barrier requirements.
Upright posts are supplied at 1060mm high.
If you require a Handrail / Barrier System that is not listed here then please e-mail us for a quote.
Price given is for a single side. If a double sided rail (LHS & RHS) is required, you will need to double your order at checkout
You can add powder coating via the powder coating section at the top of the website. Add the item(s) needed to your basket first then visit the powder coating section after! As standard the unit is supplied in a galvanised finish. If the Powder Coated option is selected, please allow up to 14 working days for delivery
As the tubing is cut to size, from your selection, the tubing is not eligible for a full refund if returnable as unwanted or unsuitable for requirement.
Please note these kits are not covered by standard international postage. Please send us an e-mail for a quote to your location.
All the clamps we sell are cross compatible. We sell brands including: Q Clamp, Tubeclamps, Pipeclamps, Interclamp, JM Clamp and Alvin Key Clamp, amongst a few other generic Key Clamp Brands.
Some manufacturers use different part numbers. Give us a call if you aren't sure what part you need because your original part number doesn't tally up.
And remember, all key clamps are returnable if they do not suit. With the exception of Cut to length Handrail Tube and Modified parts, we accept returns with no questions asked.
