Powder Coated Black Base Plate 132 B 34 34mm

£9.29 inc. VAT
£7.74 ex. VAT

In stock

Key Clamp size guide

Key Clamp 27mm

Our 27mm system is designed for use with 26.9mm External Diameter Tube with a 3.25mm Wall Thickness. This is commonly referred to as 3/4" (Three Quarters of an Inch) Internal Diameter pipe.

Best For:

  • Lightweight Frames
  • Small Furniture
Key Clamp 34mm

Our 34mm system is designed for use with 33.7mm External Diameter Tube with a 3.25mm Wall Thickness. This is commonly referred to as 1" (One Inch) Internal Diameter pipe.

Best For:

  • General Use (Light)
  • Clothing Rails
Key Clamp 42mm

Our 42mm system is designed for use with 42.4mm External Diameter Tube with a 3.25mm Wall Thickness. This is commonly referred to as 1.1/4" (One and Quarter Inches) Internal Diameter pipe.

Best For:
  • Handrailing, Light Barriers
  • Desks, Tables, Chairs
Key Clamp 48mm

Our 48mm system is designed for use with 48.3mm External Diameter Tube with a 3.25mm Wall Thickness. This is commonly referred to as 1.1/2" (One and Half Inches) Internal Diameter pipe, and is the standard Scaffolding size also.

Best For:

  • Pedestrian Safety
  • Heavy Handrailing
Key Clamp 60mm

Our 42mm system is designed for use with 60.3mm External Diameter Tube with a 3.50mm Wall Thickness. This is commonly referred to as 2" (Two Inch) Internal Diameter pipe.

Best For:

  • Ultra Heavy Handrailing
  • Heavy Duty Frames

DDA Fittings

DDA Fittings are part of a hybrid system that incorporates a mixture of 42mm and 48mm systems. We always recommend that our customers seek expert advice with DDA systems and fittings, especially if you are unaware of the differences regarding installation and design of DDA compliant handrails.



SKU
B132-B34
Require more information on this product, or a quotation? Send us an enquiry with your photos or drawings. Start an enquiry →
Qty

Quick overview

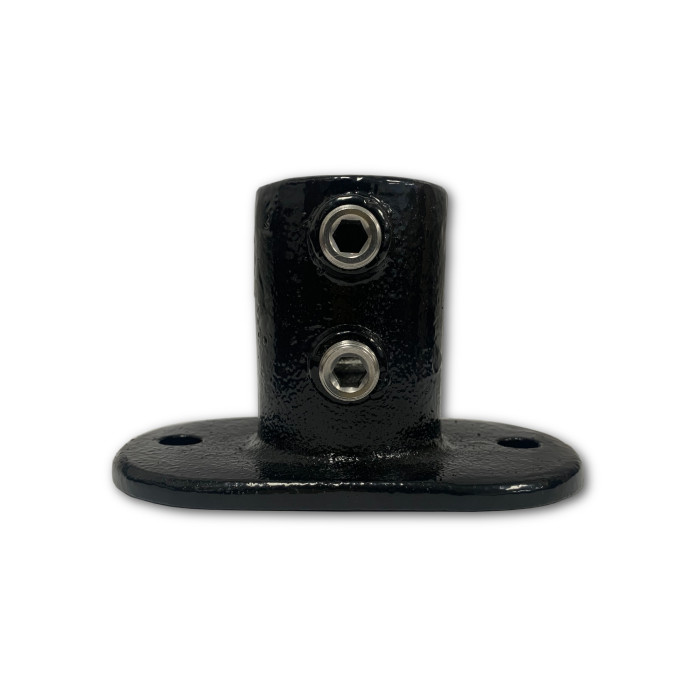

34mm Base Plate. Size and Model also known as part 132 size 34 or size B

Used as structural support for upright posts. When used within a barrier or handrail system the fitting should be positioned with the holes across the line of the rail to provide maximum strength and loading. The bolt holes in the plate enable the use of mechanical or chemical anchor fixings. Overall Length 130mm Overall Height 88mm Overall Width 76mm Hole Size: 14mm
System Size 34mm
Requires Freight Shipping No
Powder Coating Available No

Information On Key Clamps

All the clamps we sell are cross compatible.
We sell brands including: Q Clamp, Tubeclamps, Pipeclamps, Interclamp, JM Clamp and Alvin Key Clamp, amongst a few other generic Key Clamp Brands.

Some manufacturers use different part numbers.
Give us a call if you aren't sure what part you need because your original part number doesn't tally up.

And remember, all key clamps are returnable if they do not suit.
With the exception of Cut to length Handrail Tube and Modified parts, we accept returns with no questions asked.
