Inline Swivel Tee 34mm 148-B34

£3.00 inc. VAT
£2.50 ex. VAT

In stock

Key Clamp size guide

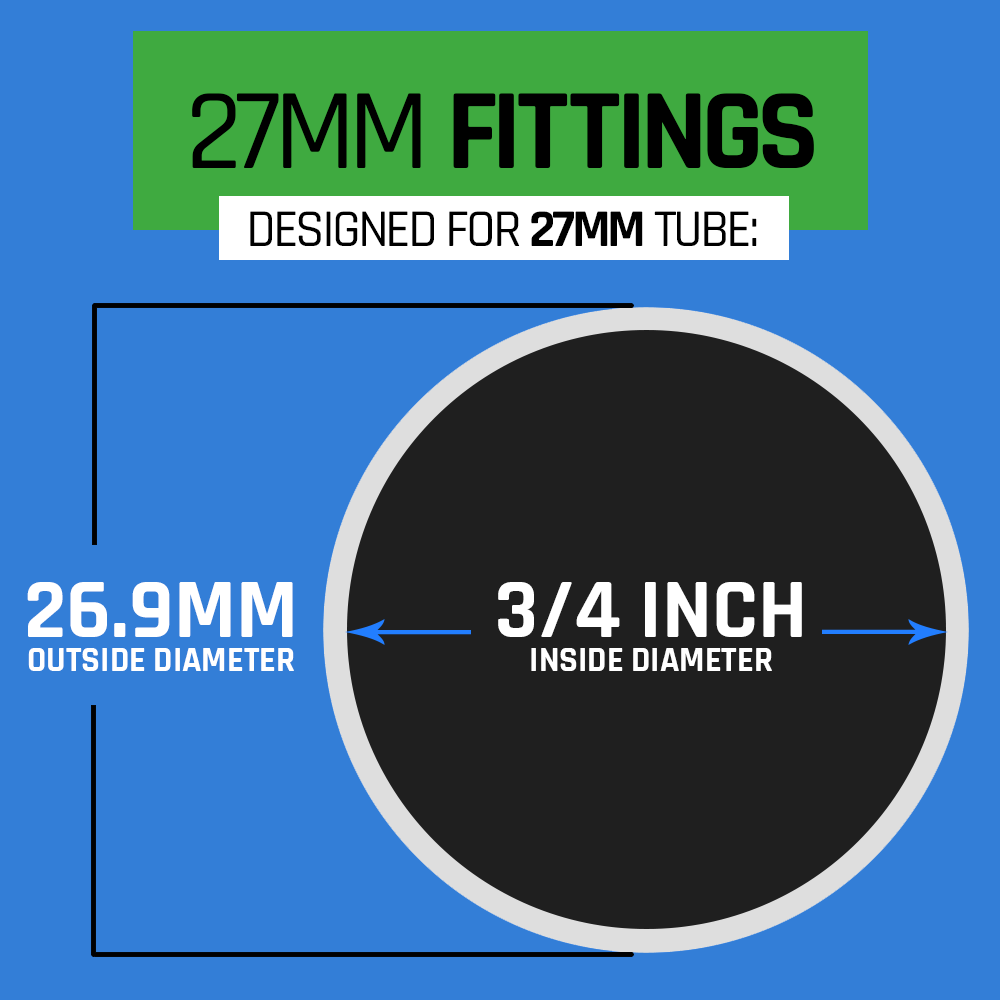

Key Clamp 27mm

Our 27mm system is designed for use with 26.9mm External Diameter Tube with a 3.25mm Wall Thickness. This is commonly referred to as 3/4" (Three Quarters of an Inch) Internal Diameter pipe.

Best For:

  • Lightweight Frames
  • Small Furniture

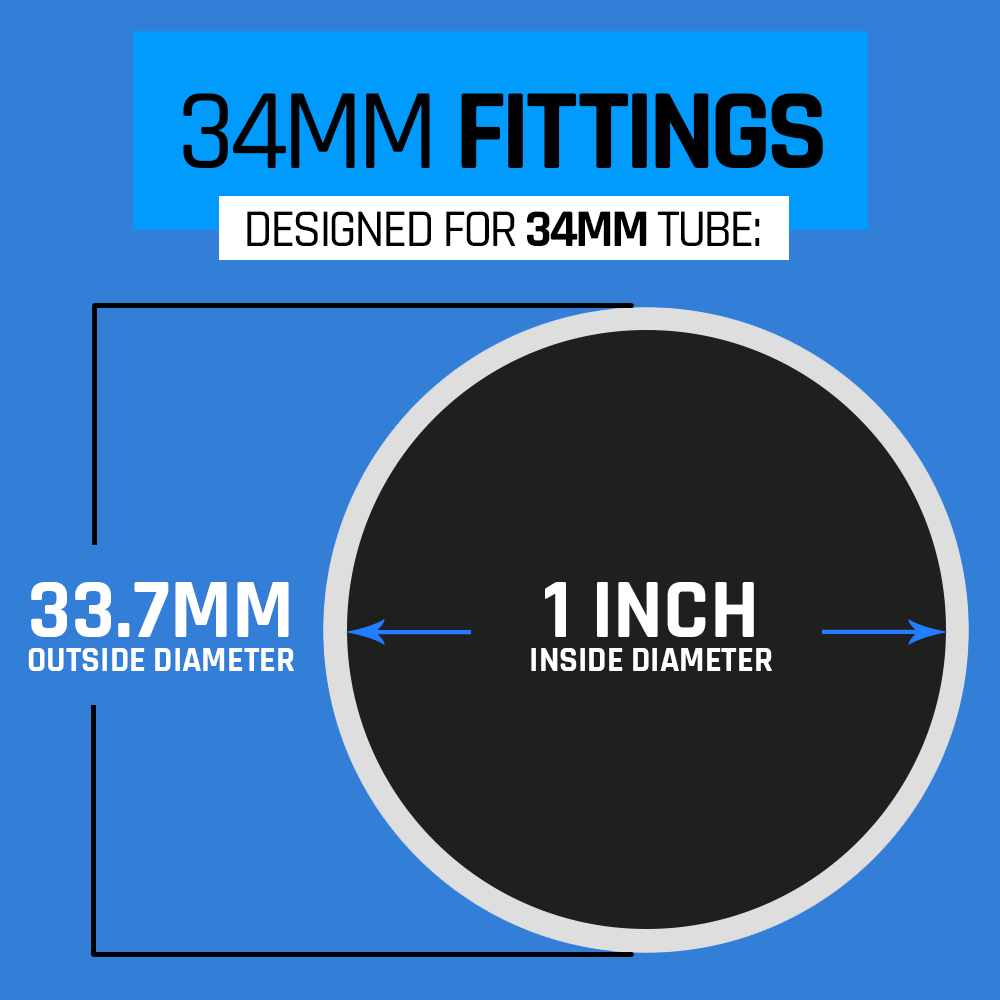

Key Clamp 34mm

Our 34mm system is designed for use with 33.7mm External Diameter Tube with a 3.25mm Wall Thickness. This is commonly referred to as 1" (One Inch) Internal Diameter pipe.

Best For:

  • General Use (Light)
  • Clothing Rails

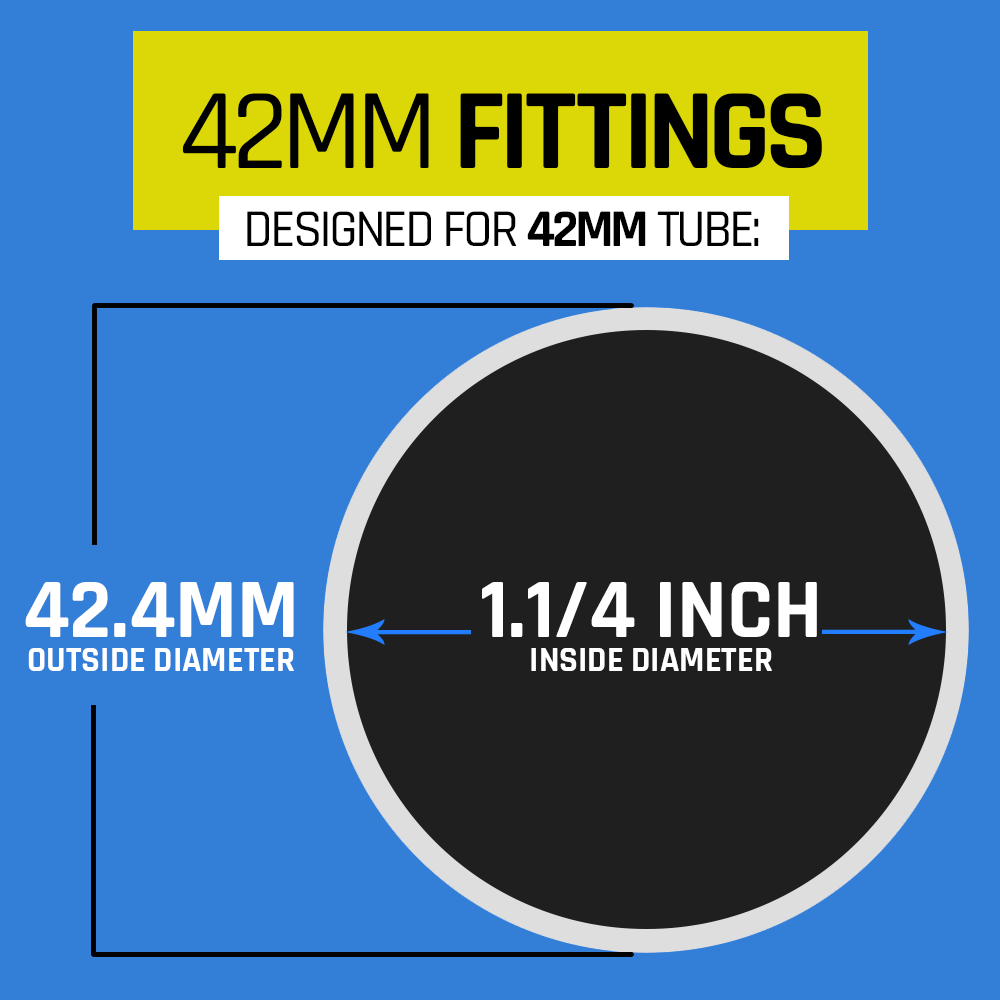

Key Clamp 42mm

Our 42mm system is designed for use with 42.4mm External Diameter Tube with a 3.25mm Wall Thickness. This is commonly referred to as 1.1/4" (One and Quarter Inches) Internal Diameter pipe.

Best For:
  • Handrailing, Light Barriers
  • Desks, Tables, Chairs

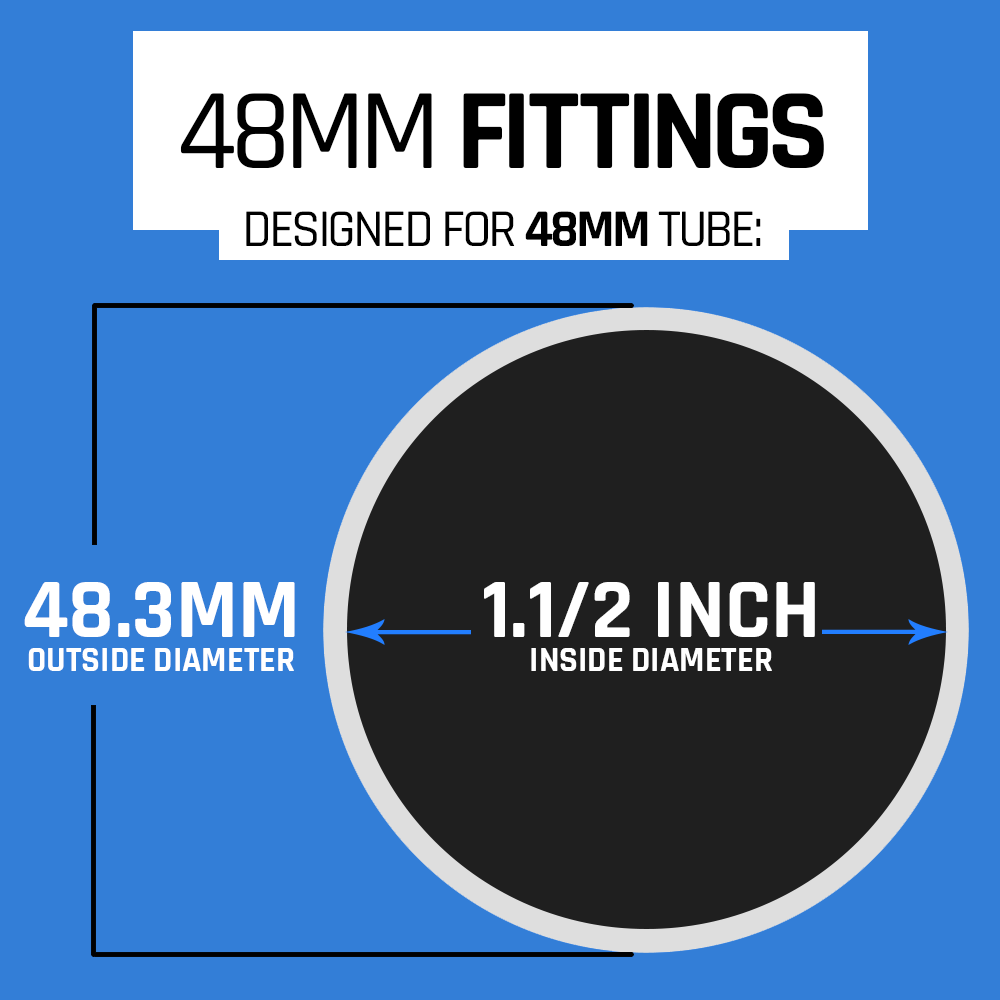

Key Clamp 48mm

Our 48mm system is designed for use with 48.3mm External Diameter Tube with a 3.25mm Wall Thickness. This is commonly referred to as 1.1/2" (One and Half Inches) Internal Diameter pipe, and is the standard Scaffolding size also.

Best For:

  • Pedestrian Safety
  • Heavy Handrailing
Key Clamp 60mm

Our 42mm system is designed for use with 60.3mm External Diameter Tube with a 3.50mm Wall Thickness. This is commonly referred to as 2" (Two Inch) Internal Diameter pipe.

Best For:

  • Ultra Heavy Handrailing
  • Heavy Duty Frames

DDA Fittings

DDA Fittings are part of a hybrid system that incorporates a mixture of 42mm and 48mm systems. We always recommend that our customers seek expert advice with DDA systems and fittings, especially if you are unaware of the differences regarding installation and design of DDA compliant handrails.



SKU
148-B34
Require more information on this product, or a quotation? Send us an enquiry with your photos or drawings. Start an enquiry →
Qty
  • Buy 60 for £2.56 £2.13 each and save 15%

Quick overview

A 34mm Inline Swivel. Key Clamp is ideal for lots of uses. Size and Model also known as part 148 size 34 or size B

Sold as a single fitting but normally used in pairs (as illustrated) to provide angles between 85° and 235°. In most applications it's desirable to have the middle tubing plugged using a Plastic End Cap 133.

Key Clamp fitting 148-B34 Designed for use with 33.7mm Outer Diameter Tubing, referred to as 34mm across our site.

Cross References
  • Kee Klamp Reference: 19-6
  • FastClamp Reference: C25G25
  • Alvin Key Clamp Reference: A21 Size 6
GTIN 5061091710976
System Size 34mm
Also Known As Adjustable Side Outlet Tee
KK No. 19
Compatible with Kee Klamp 19-Jun
Requires Freight Shipping No
Powder Coating Available Yes

Information On Key Clamps

All the clamps we sell are cross compatible.
We sell brands including: Q Clamp, Tubeclamps, Pipeclamps, Interclamp, JM Clamp and Alvin Key Clamp, amongst a few other generic Key Clamp Brands.

Some manufacturers use different part numbers.
Give us a call if you aren't sure what part you need because your original part number doesn't tally up.

And remember, all key clamps are returnable if they do not suit.
With the exception of Cut to length Handrail Tube and Modified parts, we accept returns with no questions asked.
