ALL POWDERCOATING ORDERS ARE CURRENTLY APPROX 14 DAYS
Our 27mm system is designed for use with 26.9mm External Diameter Tube with a 3.25mm Wall Thickness. This is commonly referred to as 3/4" (Three Quarters of an Inch) Internal Diameter pipe.
Best For:
Lightweight Frames
Small Furniture
Key Clamp 34mm
Our 34mm system is designed for use with 33.7mm External Diameter Tube with a 3.25mm Wall Thickness. This is commonly referred to as 1" (One Inch) Internal Diameter pipe.
Best For:
General Use (Light)
Clothing Rails
Key Clamp 42mm
Our 42mm system is designed for use with 42.4mm External Diameter Tube with a 3.25mm Wall Thickness. This is commonly referred to as 1.1/4" (One and Quarter Inches) Internal Diameter pipe.
Best For:
Handrailing, Light Barriers
Desks, Tables, Chairs
Key Clamp 48mm
Our 48mm system is designed for use with 48.3mm External Diameter Tube with a 3.25mm Wall Thickness. This is commonly referred to as 1.1/2" (One and Half Inches) Internal Diameter pipe, and is the standard Scaffolding size also.
Best For:
Pedestrian Safety
Heavy Handrailing
Key Clamp 60mm
Our 42mm system is designed for use with 60.3mm External Diameter Tube with a 3.50mm Wall Thickness. This is commonly referred to as 2" (Two Inch) Internal Diameter pipe.
Best For:
Ultra Heavy Handrailing
Heavy Duty Frames
DDA Fittings
DDA Fittings are part of a hybrid system that incorporates a mixture of 42mm and 48mm systems. We always recommend that our customers seek expert advice with DDA systems and fittings, especially if you are unaware of the differences regarding installation and design of DDA compliant handrails.
Quick Overview

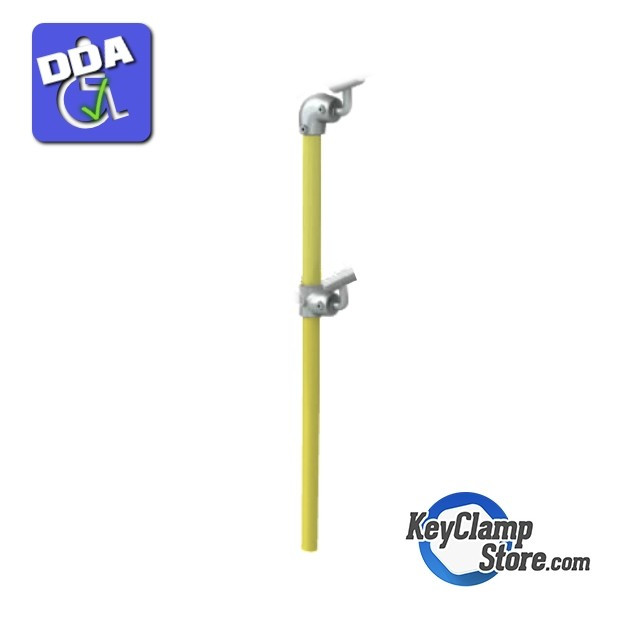

DDA Compliant Middle Post.
Select the options you require from the drop down menus below. However, as standard, the fittings have the ability to work to any angle, the post height is 1060mm, and all material is galvanised. Some minor cutting will be required on-site, when making adjustments for an angled application. Post supplied in 48mm, handrail in 42mm, to provide both strength and comfortable support.
Aimed to comply with DDA / Part M regulations. With no welding required, these units are almost too easy to install! Please note the DDA style posts are not supplied 'pre-built' and you will need to supply your own self tapping screws or rivets, to pin the handrail the unit itself.
All DDA posts are supplied with Short Tee's to help provide range in the height of the positioning of horizontal handrail.
Use the drop down menus above to customise the post to your requirements! You can add powder coating via the powder coating section at the top of the website. Add the item(s) needed to your basket first then visit the powder coating section after! As standard the unit is supplied in a galvanised finish.
For orders containing Powder Coating, please allow 5-7 working days for delivery. Please allow up to 10 days for smaller orders of less than 5 units. For a more accurate delivery date, please contact our sales team.
Unfortunately, this item is not covered by our standard international postage. However, if you are an international buyer, please contact us with your order for a shipping estimate.
For orders containing Powder Coating, please allow up to 5 working days for delivery. For a more accurate delivery date, please contact our sales team. Please note that we do not supply Powder Coated orders pre-built. Unfortunately, this item is not covered by our standard international postage. However, if you are an international buyer, please contact us with your order for a shipping estimate.
All the clamps we sell are cross compatible. We sell brands including: Q Clamp, Tubeclamps, Pipeclamps, Interclamp, JM Clamp and Alvin Key Clamp, amongst a few other generic Key Clamp Brands.
Some manufacturers use different part numbers. Give us a call if you aren't sure what part you need because your original part number doesn't tally up.
And remember, all key clamps are returnable if they do not suit. With the exception of Cut to length Handrail Tube and Modified parts, we accept returns with no questions asked.
