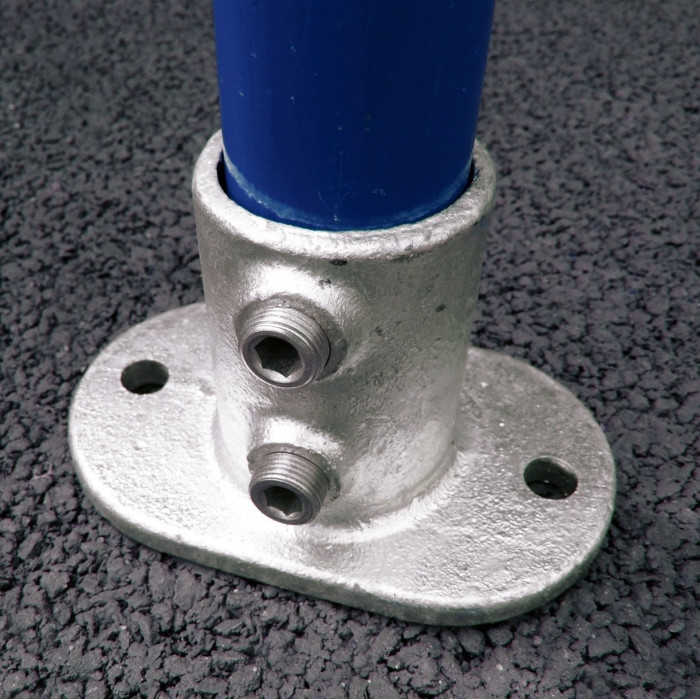

Base Plate 34mm 132 34 B

A 34mm Base Plate. Key Clamp is ideal for lots of uses. Size and Model also known as part 132 size 34 or size B

Used as structural support for upright posts. When used within a barrier or handrail system the fitting should be positioned with the holes across the line of the rail to provide maximum strength and loading. The bolt holes in the plate enable the use of mechanical or chemical anchor fixings.

  • Overall Length 130mm

  • Overall Height 88mm

  • Overall Width 76mm

  • Hole Size: 14mm

The tubing cannot be passed through the fitting, however we can modify the fitting to do this; please contact us for more info!

Availability: In stock for immediate despatch!

Excl. Tax: £3.18 Incl. Tax: £3.82
Price Breaks Are Available On This Product!
Quantity Price Save
30 £2.82 12%
KeyClampStore

Not sure if this is what you need? Call us!

Industry leading no-hassle, fuss-free returns policy.

Trained staff with knowledge of Key Clamp fittings, railings & balustrades.

Product Description
Details
Key Clamp fitting132-B34Designed for use with 33.7mm Outer Diameter Tubing, referred to as 34mm across our site.

Cross References
  • Kee Klamp Reference: 62-6
  • FastClamp Reference: C12G25
  • Alvin Key Clamp Reference: A12 Size 6
Additional Information
Additional Information
UPC / EAN 638317732415
best No
KK Reference Name standard base flange
KK No. 62
KK SKU 62-6
Send inquiry? N/A
Call For Price No
Product Tags
Product Tags

Use spaces to separate tags. Use single quotes (') for phrases.

Our Policies

Information On Key Clamps

All the clamps we sell are inter compatible.
We sell brands including: Q Clamp, Tubeclamps, Pipeclamps, Interclamp, JM Clamp and Alvin Key Clamp, amongst a few other generic Key Clamp Brands.

Some manufacturers use different part numbers.
Give us a call if you aren't sure what part you need because your original part number doesn't tally up.

And remember, all key clamps are returnable if they do not suit.
With the exception of Handrail, Tube and Modified parts, we accept returns with no questions asked.
