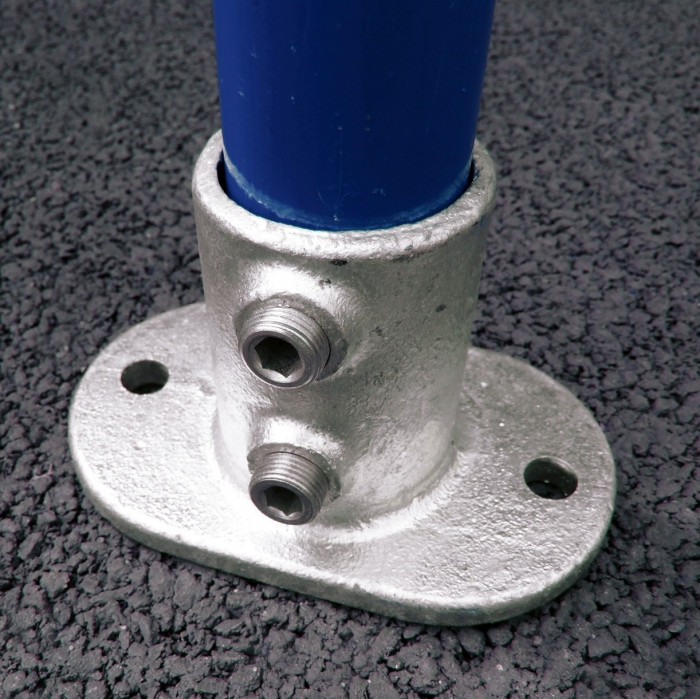

Base Plate 27mm 132 27 A

A 27mm Base Plate. Key Clamp is ideal for lots of uses. Size and Model also known as part 132 size 27 or size A

Used as structural support for upright posts. When used within a barrier or handrail system the fitting should be positioned with the holes across the line of the rail to provide maximum strength and loading. The bolt holes in the plate enable the use of mechanical or chemical anchor fixings.


The tubing cannot be passed through the fitting, however we can modify the fitting to do this; please contact us for more info!

Availability: In stock for immediate despatch!

Excl. Tax: £2.40 Incl. Tax: £2.88
Price Breaks Are Available On This Product!
Quantity Price Save
35 £2.13 12%
KeyClampStore

Not sure if this is what you need? Call us!

Industry leading no-hassle, fuss-free returns policy.

Trained staff with knowledge of Key Clamp fittings, railings & balustrades.

Product Description
Details
Key Clamp fitting132-A27Designed for use with 26.9mm Outer Diameter Tubing, referred to as 27mm across our site.

Cross References
  • Kee Klamp Reference: 62-5
  • FastClamp Reference: C12G20
  • Alvin Key Clamp Reference: A12 Size 5
  • WARNING: DUE TO THE NATURE OF THESE GALVANISED CASTINGS THE MEASUREMENTS GIVEN HERE CANNOT BE PRECISE. WE THEREFORE DO NOT RECOMMEND THAT ANY BOLT HOLES ARE PRE-DRILLED PRIOR TO INSTALLATION.

    132-sketch

    REF No.ABCDEFGHole Diameter (mm)Weight (kgs)
    132-A27 27MM 76mm 52mm 105mm 60mm 7mm 11mm 0.40
    132-B34 34MM 89mm 62mm 127mm 71mm 7mm 14mm 0.64
    132-C42 42MM 101mm 72mm 139mm 84mm 7mm 14mm 0.85
    132-D48 48MM 114mm 86mm 152mm 89mm 10mm 14mm 1.15
    132-E60 60MM 127mm 104mm 165mm 104mm 10mm 17mm 1.50
Additional Information
Additional Information
UPC / EAN 638317732408
best No
Kee Klamp Reference Name standard base flange
Kee Klamp No. 62
Kee Klamp SKU 62-5
Send inquiry? No
Call For Price No
Product Tags
Product Tags

Use spaces to separate tags. Use single quotes (') for phrases.

Our Policies

Information On Key Clamps

All the clamps we sell are inter compatible.
We sell brands including: Q Clamp, Tubeclamps, Pipeclamps, Interclamp, JM Clamp and Alvin Key Clamp, amongst a few other generic Key Clamp Brands.

Some manufacturers use different part numbers.
Give us a call if you aren't sure what part you need because your original part number doesn't tally up.

And remember, all key clamps are returnable if they do not suit.
With the exception of Handrail, Tube and Modified parts, we accept returns with no questions asked.
